LZWSMDJOK

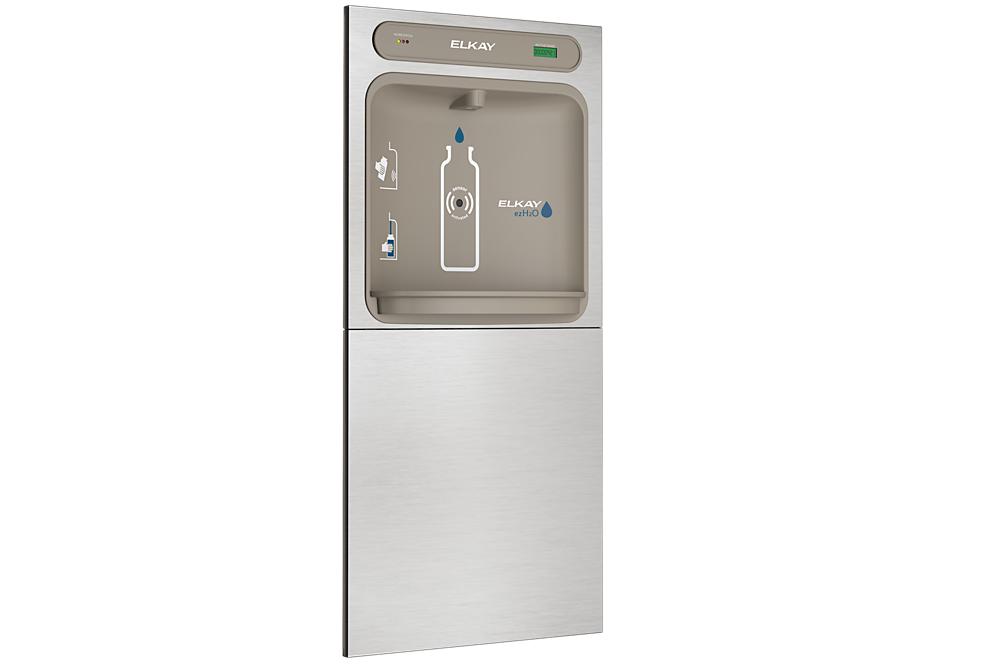

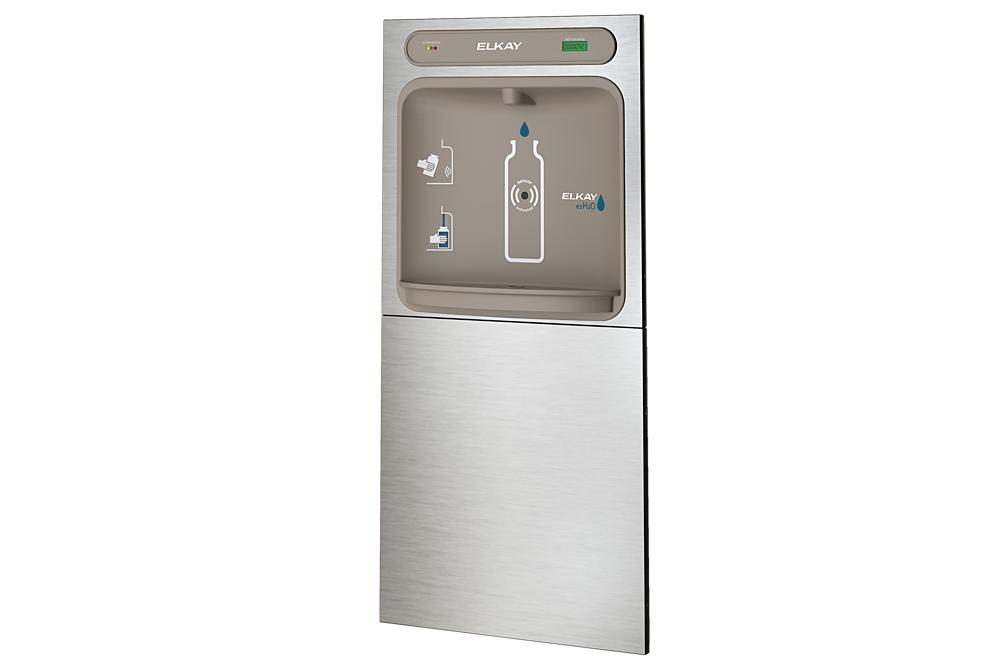

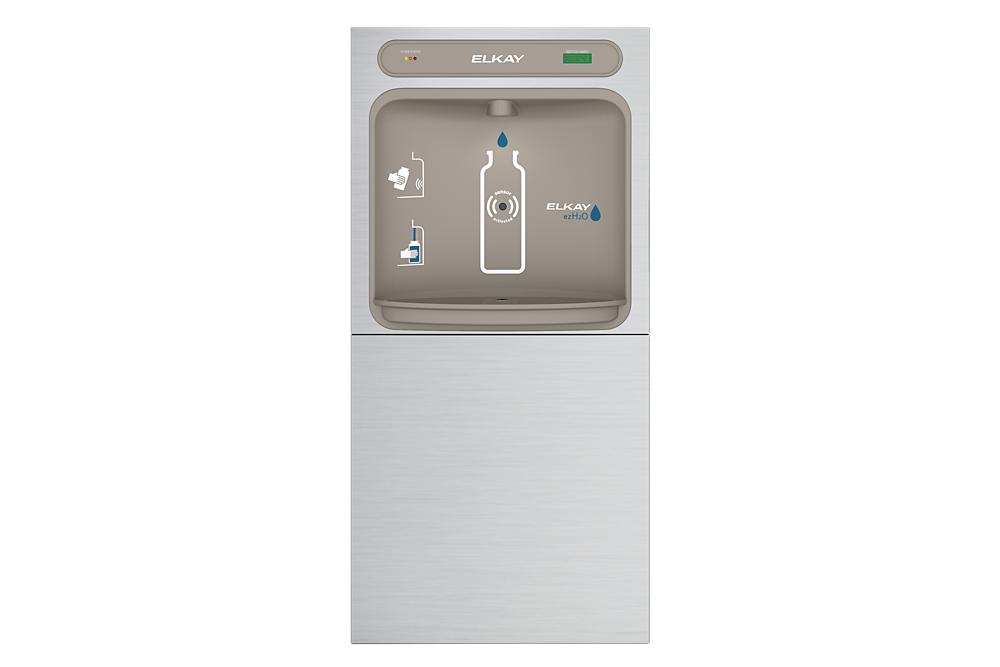

Elkay ezH2O® Bottle Filling Station In-Wall Filtered Non-Refrigerated Stainless 220V

Product Support
ADA Yes
Installation Location Indoor
Power 220V/50-60Hz
Material Stainless Steel
Finish Stainless Steel
Features Antimicrobial
Filtered
Green Ticker™
Hands Free
Laminar Flow
Real Drain
Visual Filter Monitor
Number of Stations 1
Bubbler Style No Bubbler
Filtered Yes
Chilling Capacity Non-refrigerated
Mounting Option Wall Mount (Inwall Frame/Plate)
Included with Product Bottle Filler (LZWSMDJOC)
Filter (EWF3000)
Mounting Frame (MFWS100)
Country Of Origin USA
Code Compliance Drinking Solutions ADA & ICC A117.1
ASME A112.19.3/CSA B45.4
CAN/CSA C22.2 No. 120
GreenSpec
NSF 372 (lead free)
NSF 42
NSF 53
NSF 61
UL 399
NSF 401
Code Compliance International NSF REG4
Dimensions L: 19-3/4"
W: 3-1/2"
H: 40-13/16"
Shipping Dimensions L: 25-3/4"
W: 37-7/8"
H: 44-1/2"
Shipping Weight 33 LBS
Note Refrigerated options available.

The Elkay EZH2O® Bottle Filling Station delivers a clean quick water bottle fill and enhances sustainability by minimizing our dependency on disposable plastic bottles. Fully recessed in-wall design. Sanitary no-touch sensor activation with automatic 20-second shut-off timer.

  • Designed as a stand-alone unit or to be paired with Elkay® SwirlFlo or Soft Sides® architectural fountains
  • Touchless, sensor activation (bottle filler) designed for easy use.
  • Fill rate is 1.5 GPM.
  • Visual filter monitor with LED filter status indicator for when filter change is necessary.
  • The 3,000-gallon filter is certified to NSF 42 and 53 for lead, Class 1 particulate, chlorine, taste and odor reduction.
  • Green Ticker™ informs user of number of 20 oz. plastic water bottles saved from waste.
  • Key plastic components are manufactured with silver ion antimicrobial agent helping to provide clean, stain- and odor-free surfaces
  • Silver ion antimicrobial protection on key plastic components to inhibit the growth of mold and mildew.
  • Real drain system eliminates standing water.
  • Touchless, sensor-activated bottle filler designed for easy use.
